2014 Fiesta ST

[STHeart]

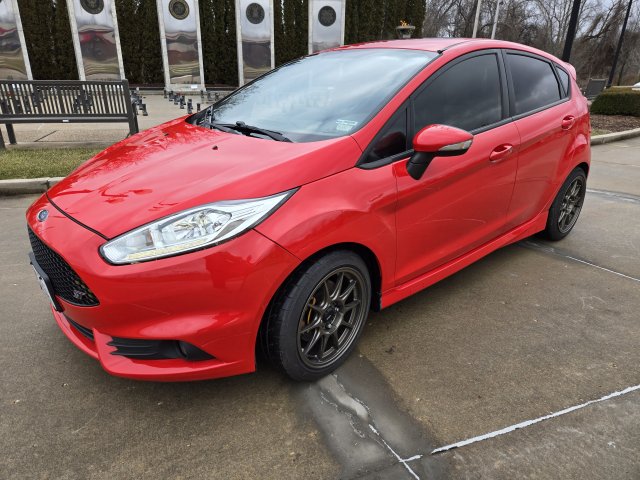

Joined this group a while ago (like several years ago!!), but haven't ever really looked at/used this forum. Planning on changing that. Some pics of the bean, as well as a dyno run from early November. I've done some of the work, Panda Motorworks has done some of the work. Mod list below.

2014 1.6L Fiesta ST Mod List

Block/Engine
New short block – Panda built stage 2 Fiesta ST Short Block
Parts from Panda Motorworks to complete build, including
Supertech Beehive Valve Spring Kit
Supertech Ford Ecoboost 1.6L Black Nitrided Intake Valve x 8
Supertech Ford Ecoboost 1.6L Sodium Filled Inconel Exhaust Valve x 8
Supertech 5 mm Single Groove Valve Lock Conversion – set of 32
Mountune 1.6L Ecoboost Oil Control System Fiesta ST
Mountune Triple Pass radiator upgrade for Fiesta ST

Air/Turbo/Exhaust
Injen SP Short Ram Cold Air Intake System (Polished or Wrinkle Black depending on mood) – SP9016(P or WB)
Garrett GTX 2867R Gen II turbo with A/R 0.64
Bravo Alpha Performance BIG Fiesta ST Intercooler Kit
2014+ Fiseta ST Whoosh brand Intercooler Boost Hose kit
WOR Fabrications Fiesta ST Hot Parts Kit:
Manifold
Downpipe
Wastegate Dump Tube
2.5 Hotside Charge Pipe
Oil Return Line
New Ford OEM manifold gasket and DP-Exhaust gasket
ATP Fiesta ST Oil feed and coolant line set (ATP-FIE-022)
Turbosmart WG40 Gen V Comp-Gate 40mm – 14 psi Black
ATP Tial Housing, Turbine, Stainless, GTX28, 0.64 A/R V-band inlet/outlet
Tial Stainless V-band Clamp Turbine (Downpipe side) Outlet for Housing GT28
Tial Stainless V-band Clamp Turbine (Manifold side) Inlet for Housing GT28
Thermal R&D 3” Fiesta ST Exhaust system
VelossaTech BigMouth 2014-2019 Ford Fiesta ST Ram Air Intake Snorkel
SVT Design Fresh Air Duct for 2014-2019 Fiesta ST Cold Air Intake

Fuel
Boomba Ford 1.6L Fiesta ST Aux Fuel Rail
Bosch EV14 Universal 48 mm standard 550cc/min injectors x 4

Electronics
Cobb Ford Fiesta ST Accessport V3
Split Second AIC1-AH4 Absolute Pressure, 4Hi Z Additional Injector Controller
52 mm Fiesta ST Boost Gauge Pod Vent Holder Mount

Drivetrain
Wavetrac LSD
ATB Differential Installation kit (Mountune)
SPEC Stage 3 Clutch
SPEC Aluminum flywheel

Chassis/Suspension
BC Racing BR series Coilovers (front) and Springs/Shocks (rear)
TB Performance Trunk Brace for Ford Fiesta ST
TB Performance Crossmember Brace for Ford Fiesta ST
TB Performance Front Crash Bar for Ford Fiesta ST

Exterior
Ford Fiesta DEPO headlights R/L 431-11B5RMLD-EM and 431-11B5LMLD-EM
ZDEERAOTO Smoked LED 3rd Third Brake Light Ford Fiesta - Roof Center High Mount
GLISTUNING LED Tail Lights Assembly - Ford Fiesta 2011-2019

I've got several sets of wheels - the wheel situation is a bit of a mess. Ultimately will standardize to 16" wheels for all 3 sets.:
15" rims with Michelin X-Ice winter tires. Will be changing these out to 16 wheels/tires next winter for the winter shoes.
16" Konig Dekagrams with Firehawk 500's - plan on getting some MUCH stickier tires this spring.
17" stock wheels with all-season radials...plan on replacing with another set of 16" Dekagrams with 16" UHP All-Season radials.

Next upgrade is a bigger brake set (front and rear), able to fit in the 16" Dekagrams.

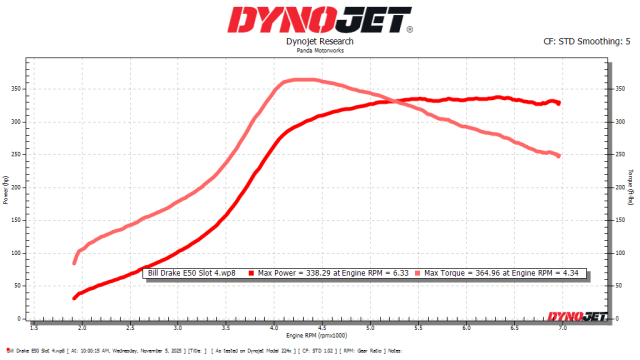

With regards to the dyno plot, I am very happy with a consistent, reliable, not-gonna-break-anything 340 hp out of this car. I am certainly aware that some folks would push this harder - I am NOT "some folks." 29 psi and 340 hp to me is just fine, and that's where I'm leaving it.

Anyways, thought I'd (finally) introduce myself and the car.

I can honestly say this car is the most fun I've ever had driving. Solid, planted feel, a ton of power...driving it makes me very happy!



[Grsemky]

Spicy bean 😍😍



[M-Sport fan]

That's the way to get great power combined with sane, thoughtful reliability!

Unless you are roll racing in 'Mexico', or drag racing with a useless suspension for street use, anything above that power level is wasted, and simply chasing numbers for bragging rights, yes, even with a diff and sticky donuts.

Did the Panda short block include any forged or balanced internals?
Still open deck or was that modded?



[STHeart]

Did the Panda short block include any forged or balanced internals?
Still open deck or was that modded?

We looked at going with forged internals, but then COVID happened and the forged bits were hard to come by....we did try one forged option but kept having rod-crankshaft bearing failures, so reverted to stock as after all that I changed my goals for this build to just be stock-max. So, still open deck as well.

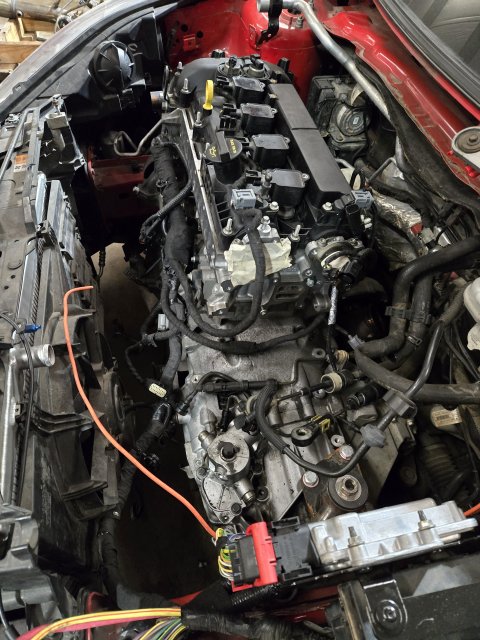

So, looking at what options were possible for a big HP Fiesta, we decided that it is feasible (and interesting) to look at putting the 2 L Ecoboost engine into a Fiesta. So I've gone that direction with a second Fiesta ST...lots of work has gone into the car, exclusively by the folks (Chris and Zach) at Panda Motorworks to date.

So, into THAT car...

Stanceparts Air Cups - 1 pair × 1
Air Lift LoadController Dual-Path On-Board Air Compressor System with Standard Duty Compressor × 1
Panda Motor Works Stage 1 2.0 Head × 1
Ford MMT6 Carbon Synchro Set - Focus ST/RS × 1
Radium Engineering 2013+ Ford Focus PCV Baffle Plate OEM Configuration × 1
Garrett G25 Turbine Hsg Kit O/V V-Band / V-Band 0.92 A/R - Standard Rotation × 1
cp-e™ Atmosphere 2.0 EcoBoost Fusion and Ford Focus ST Exhaust Manifold Tial Flange V-Band × 1
TiAL Sport MVR Wastegate 44mm (All Springs) w/Clamps × 1 Black
TiAL Sport Q BOV × 1 Black / 8 PSI (-12 to -15 vac)
Garrett G25-660 Super Core - Standard Rotation × 1

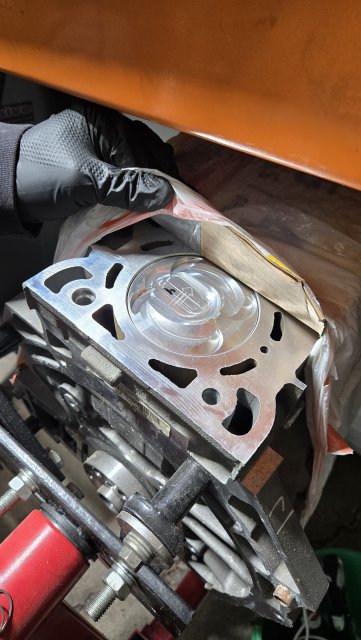

1 x PandaBuilt Stage 1 Short Block (2.0)
Xtreme DI High Pressure Fuel Pump Ford Focus ST 2013+
Xtreme-DI XDI 2050 Upgraded Injectors for 15-18 Focus ST, 16-18 Focus RS,15+ Ecoboost Mustang × 1
Box Frame Rails To Create More Space
Fab Motor Mounts To Fit 2.0 Engine
Used Ford Focus ST Transmission
COMPETITION CLUTCH TWIN DISC MPC FOCUS ST/RS × 1 Yes

AEM CD-7G Carbon Flush Digital Dash Display w/ Internal 20Hz GPS & Antenna × 1
Cobb Ford Performance EcoBoost ECU AccessPORT V3 × 1
AEM 6 Channel CAN Sensor Module × 1
Re-wired with Focus harness.

Sparco Seat EVO S QRT × 2

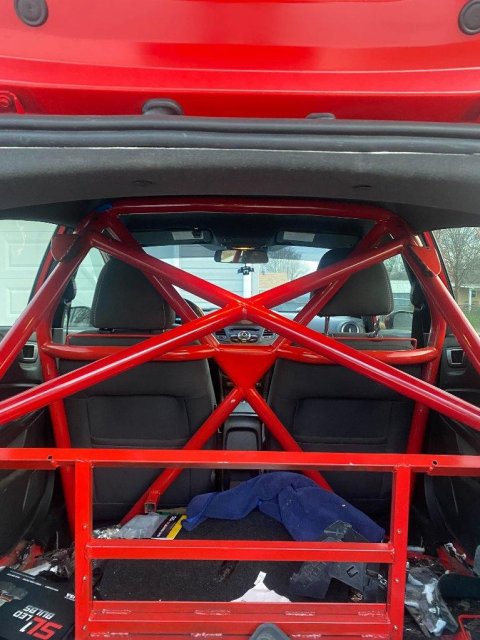

Obviously this car is being put together with serious track days in mind.

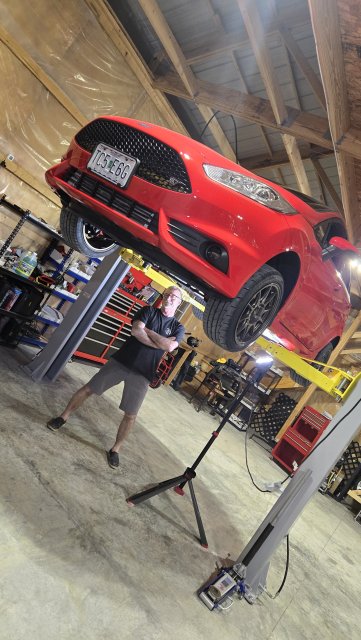

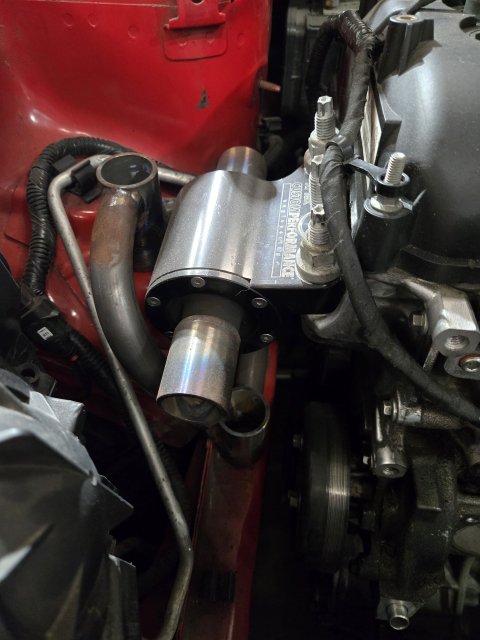

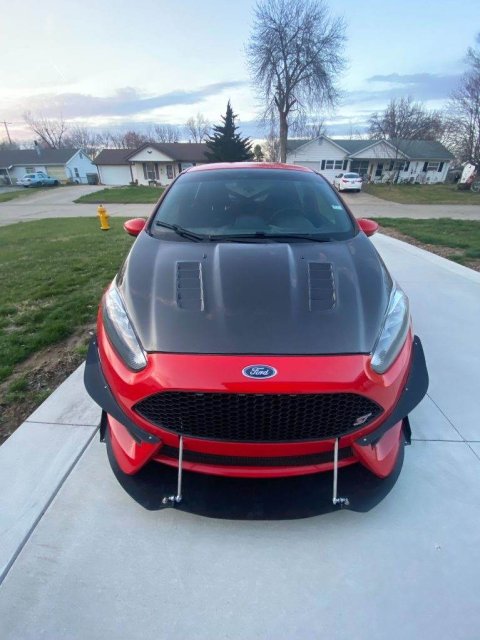

Some pics attached. Definitely a work in progress - hope to get it wrapped up by summer

The air cups are for the front - so I don't bottom out getting into my driveway which has a bit of a lip .

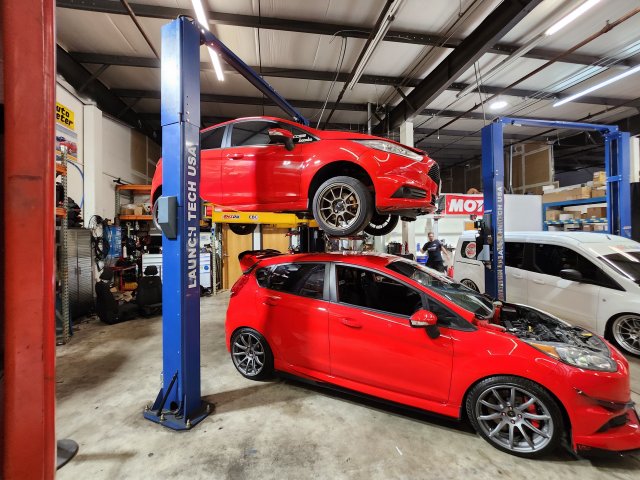

Pic of the two cars is both of my cars - little bean over the big bean.
