DIY Transmission Fluid Dipstick

koozy

3000 Post Club
Messages
3,092
Likes
1,776
Location
Los Angeles, CA, USA
#1
Remove air box/intake to gain access to the fill hole and remove the plug with a 8mm hex.


I used a coat hanger and cut it long enough to not fall in. Bend one end so the length is at least 20mm and long enough for fluid to cling on to. Sand down the wire so that it's dull, this will help in trying to see where the fluid is on the dipstick. Mark the 20mm line on the dipstick.


Take a paper towel to clean up any residual fluid on the threads of the fill hole.


Slide the dipstick in several times to see where there's a clear path without hitting anything inside. The dipstick should be parallel to the ground.


Pull the dipstick out to know whether you need to add more fluid or not. I recommend those still on the factory fill do this asap.



Last edited:
OP
koozy

koozy

3000 Post Club
Messages
3,092
Likes
1,776
Location
Los Angeles, CA, USA
Thread Starter #3
Syringe was used to suck fluid back out?


Sent from my iPhone using Tapatalk



Messages
9
Likes
5
Location
Rockland
#4
Yup. I would fill with as much new trans fluid as I had on hand, usually (2) quart bottles, or it just started to back up the fill tube. Syringe then to draw the level back down to 20mm below the hole.



OP
koozy

koozy

3000 Post Club
Messages
3,092
Likes
1,776
Location
Los Angeles, CA, USA
Thread Starter #5
Happen to know the exact amount sucked out to meet the required fill level? Sucking out is another good option for those that want to fill to the brim first.


Sent from my iPhone using Tapatalk



Messages
9
Likes
5
Location
Rockland
#6
My numbers may not be the same for every car or situation out there, but the last time I did it:
1550 ml drained out (Was it low to start? Hard to say.)
1892 ml new went in (did not back up the fill tube at all)
16 ml was all the syringe pulled out to get to 20mm

I'm going to get another data point in a couple weeks.



OP
koozy

koozy

3000 Post Club
Messages
3,092
Likes
1,776
Location
Los Angeles, CA, USA
Thread Starter #7
16 ml was all the syringe pulled out to get to 20mm

I'm going to get another data point in a couple weeks.
16 ml sucked out should be relative, probably a bit more if filled to the brim. Let us know in a couple of weeks after your new data point.



Messages
9
Likes
5
Location
Rockland
#9
Correct.

20mm vertical from the underside of the horizontal part, down to the end of the plastic tube. I held it as level as possible inside the fill hole, and pull out fluid till you are just drawing air.



Messages
38
Likes
14
Location
Chimayo, NM, USA
#10
My question is how do you know how far to insert the stick? You can basically put the stick in whatever amount and still get the oil to the 20mm mark.



TyphoonFiST

9000 Post Club
Premium Account
Messages
9,760
Likes
5,889
Location
Rich-fizzield
#14
I sure hope all those Youtubers read this first! LOL

Don't just fill to the brim! :eek:
You fill with 2qts or 1.89L...My first trans failed @ 25-26k bearing howl in 3rd gear on. Drained my "Replacement" trans...2qts/1.89L came out from fomoco..so what does that tell you? Ferd realized they were underfilling and did a TSB i was told by the Tech who did mine.



Intuit

2000 Post Club
Messages
2,789
Likes
1,363
Location
South West Ohio
#15

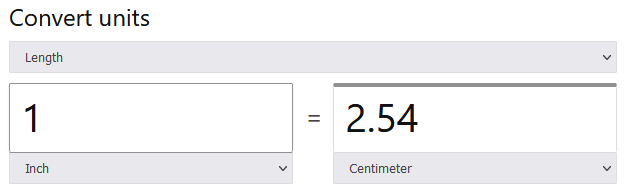

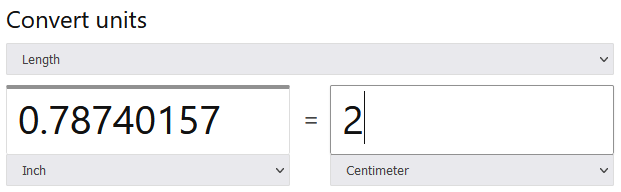

The difference between 1" and 2cm accounts for the difference between two fill levels.
Which fill level happens to be in there just depended on whether they used the 1" spec, or the 2cm spec.
That said and for the reasons I mentioned below, I went the the higher spec, versus the lesser.



One issue with trying to measure below the fill hole is that frig'n right angle.
So you're not really measuring directly from the hole to the fluid.
You have to measure even from the hole, down to the fluid.

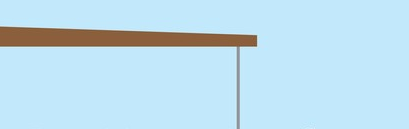

So you'd need something more like this...

But at the end of the day, I don't think it makes that much of a difference, as long as there's enough in there to start with.

If there's no pump in the man-trans, that means there are gear(s) that are partially dipped in the fluid. Those gears are responsible for "distributing" the fluid upward. How little or how much they're buried, I don't think matters. All that matters is that they're sufficiently buried. So other than maybe an axle seal leak, I doubt there'd be any risk in filling up to the hole and leaving it there. If the axle seals are well enough above that hole, (accounting for non-level surfaces and slosh,) that shouldn't even be a risk.




Last edited:
Messages
702
Likes
394
Location
Colorado Springs
#16
Remove air box/intake to gain access to the fill hole and remove the plug with a 8mm hex.


I used a coat hanger and cut it long enough to not fall in. Bend one end so the length is at least 20mm and long enough for fluid to cling on to. Sand down the wire so that it's dull, this will help in trying to see where the fluid is on the dipstick. Mark the 20mm line on the dipstick.


Take a paper towel to clean up any residual fluid on the threads of the fill hole.


Slide the dipstick in several times to see where there's a clear path without hitting anything inside. The dipstick should be parallel to the ground.


Pull the dipstick out to know whether you need to add more fluid or not. I recommend those still on the factory fill do this asap.
Doing this all from above, correct? Car is on level ground?
