Flywheel Question

[CarFan1979]

I am getting parts all together to have my clutch replaced. My current garage told me today I can't get the flywheel resurfaced. True? Ok to reuse my current flywheel or do I need to purchase a new one?
Thanks!



[Dialcaliper]

The OEM dual mass flywheel is too thin to be resurfaced. Either reuse it or just replace it. It’s usually okay to reuse, but have them
inspect it just in case, which is the only way to tell.

Has your clutch been slipping, and for how long? Generally flywheel damage is most likely when the clutch either starts slipping (due to the friction material wearing off which results in lower clamping load) and is left like that for a long time, or gets overheated and glazed by overuse (ie lots of time on the clutch in stop and go traffic or hill starts)

If the current one is in good condition, you can always return or resell a new or used flywheel.



[CarFan1979]

The OEM dual mass flywheel is too thin to be resurfaced. Either reuse it or just replace it. It’s usually okay to reuse, but have them
inspect it just in case, which is the only way to tell.

Has your clutch been slipping, and for how long? Generally flywheel damage is most likely when the clutch either starts slipping (due to the friction material wearing off which results in lower clamping load) and is left like that for a long time, or gets overheated and glazed by overuse (ie lots of time on the clutch in stop and go traffic or hill starts)

If the current one is in good condition, you can always return or resell a new or used flywheel.

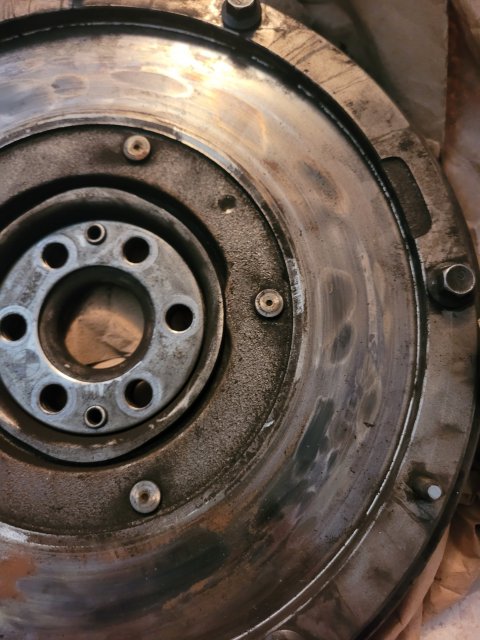

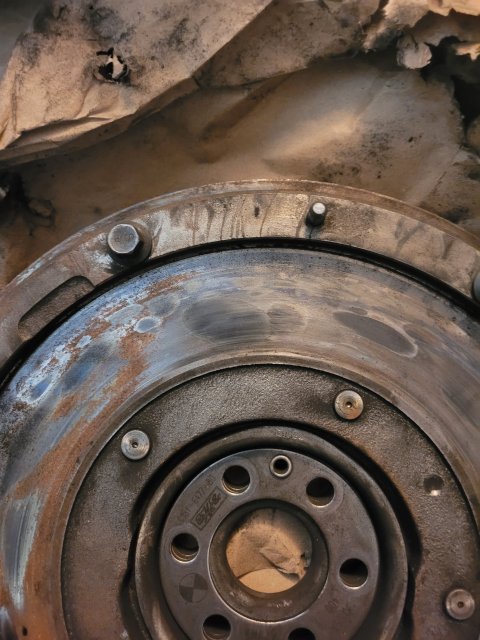

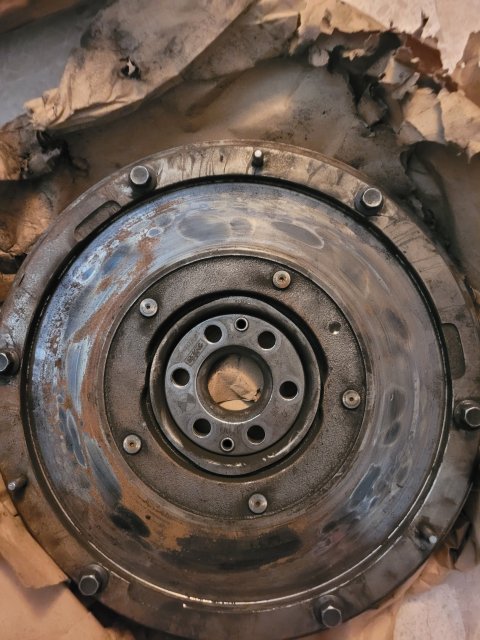

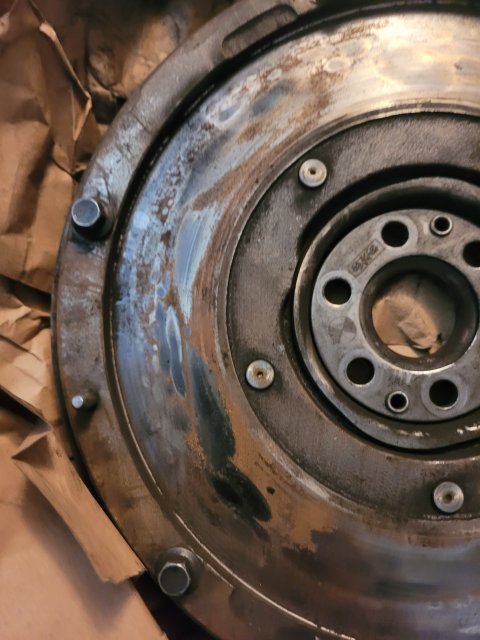

Can you tell if my current one is ok??



[Dialcaliper]

Can you tell if my current one is ok??

At first glance that looks burnt up and in pretty bad shape - the dark ovals are heat marks where the flywheel got very hot (potentially red hot). Good odds that flywheel is toast - warped and not reusable. 🥺



[CarFan1979]

At first glance that looks burnt up and in pretty bad shape - the dark ovals are heat marks where the flywheel got very hot (potentially red hot). Good odds that flywheel is toast - warped and not reusable. 🥺

Thank you!!!
Appreciate your help
I'm a new St owner



[Dialcaliper]

Thank you!!!
Appreciate your help
I'm a new St owner

Good rule of thumb is that the clutch surfaces are functionally very much like brake rotors/pads. If you saw a brake rotor looking like that, you’d probably replace it straight away.



[TyphoonFiST]

Can you tell if my current one is ok??

Does it spring back when you push the Dowel back and forth like i did with mine? If it doesn't spring back its trashed. Time for a new one. Here is a link of mine showing it wont spring back into position.

https://youtube.com/shorts/hc2PQ6-z7x0?si=tgkAEeoC0rfERLPf



[Sam4]

I went single mass flywheel and I'm still looking for footwork on 1st gear. Choose wisely....



[NOVA_Ranger]

Personally, I'd replace it with an OEM flywheel. I opted for a lighter flywheel when I did the clutch on my E36 M3 and I won't be doing that, on any of my vehicles, again.



[kivnul]

They make single-mass flywheels that are the same weight as the dual-mass OEM. As long as you go with a sprung-clutch that is not race-spec, you should be OK.



[TyphoonFiST]

They make single-mass flywheels that are the same weight as the dual-mass OEM. As long as you go with a sprung-clutch that is not race-spec, you should be OK.

RTS Dual friction and Organic have the same weight of flywheel as Stock*
