Motion Control Suspension 2W Coilovers

Messages
114
Likes
66
Location
DFW
#1
I've been running MCS 2-way adjustable remote reservoir dampers with Eibach springs (400lb front, 350lb rear) for a year now. The front dampers are Fiesta dampers, the rears are Mazda 2 coilover dampers. About half of these pictures were taken during the installation a year ago, so the sizes aren't consistent.

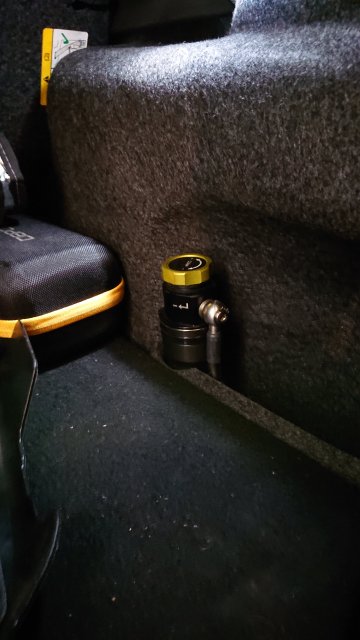

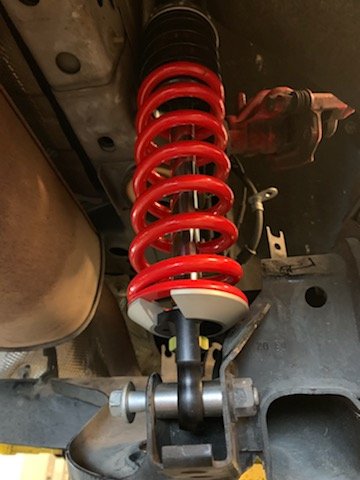

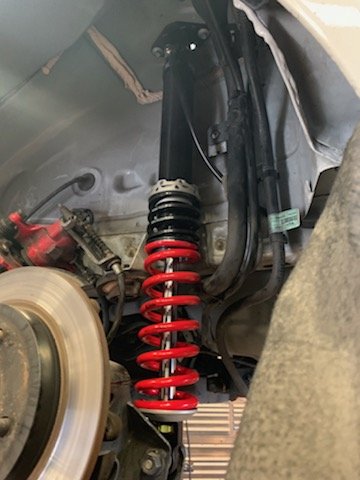

The rear dampers use clevis mounts instead of the OEM style shock mount at the top. The rear shock reservoirs are mounted inside the car, in the side pockets of the hatch.

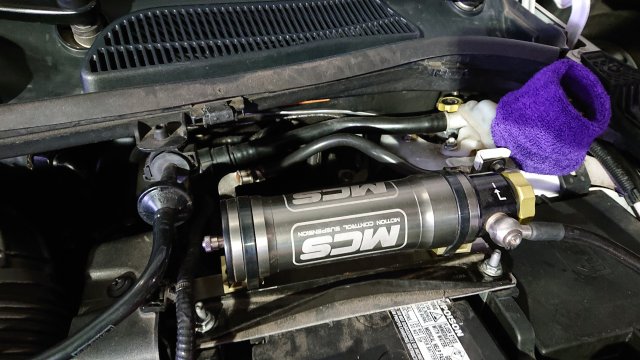

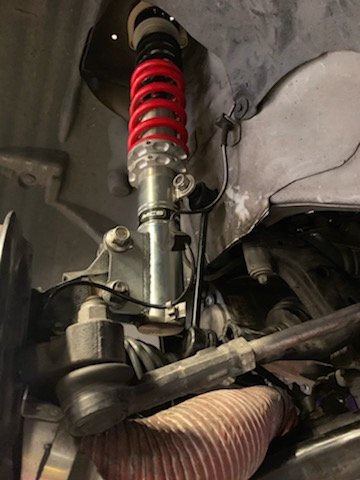

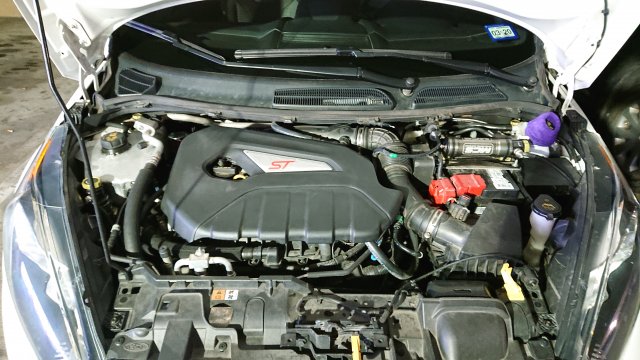

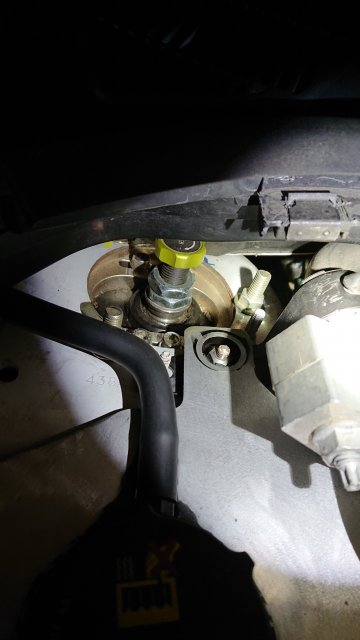

The front shocks use BC Racing camber plates with the shock mount drilled out to fit the 22mm shaft. The front reservoirs are mounted in the engine bay, with the driver's side mounted on top of the battery (a simple plate sandwiched between the battery tie down and the battery). The passenger side reservoir is held by a mount welded to a Mishimoto coolant reservoir tank (see picture).


This isn't going to be a review of these coilovers. They're competition level dampers, originally specced for slicks (original spring rate was 600lb front, 400lb rear springs, too much for street driving). I'm just posting these so people know they are an option for track/competition cars. They ride fine on the street, with a rebuild interval is 20-25,000 miles. They're noisy, especially at low speeds. But I think they're awesome and I'm very happy with them.



Last edited:
OP
Questionable
Messages
114
Likes
66
Location
DFW
Thread Starter #3
That's really good question. The clevis mounts have a thick baseplate where they mount to the stock damper location, but I didn't actually do the install, so I'm not sure if there's any reinforcement done to the top of the damper mount. I'll have to check.

Edit: I suspect not, looking at my invoice.

Sent from my H8314 using Tapatalk



Last edited:

D1JL

6000 Post Club
Staff Member
Premium Account
Messages
6,582
Likes
2,354
Location
SFV, So.Cal.
#4
I have/had a similar setup with the Ford B-Spec coilover set built by Eibach.
It was finally thought that with the constant pounding of the rear suspension due to our road conditions that it may cause a liability issue here in the US.
The B-Spec cars had additional body reinforcement done and the roll cage aided that.

Rear Down Tubes Mount XL.jpg



OP
Questionable
Messages
114
Likes
66
Location
DFW
Thread Starter #5
Did you have issues with your kit on the street?

Sent from my H8314 using Tapatalk



OP
Questionable
Messages
114
Likes
66
Location
DFW
Thread Starter #7
Hm. I'll talk with my shop and MCS directly about this, then.

That was good to know; thanks for the heads-up.

Sent from my H8314 using Tapatalk



OP
Questionable
Messages
114
Likes
66
Location
DFW
Thread Starter #9
I stopped by the shop that did the installation and asked about reinforcement of the rear shock mount. When I first decided to go with these Motion Controls, MCS approached my shop about testing the clevis mounts for the top of the rear shocks. Part of that was taking pictures of the mount and comparing to the caged cars that got similar kits. MCS was confident that the area wouldn't need reinforcement, so the shop didn't add plates.

So, I was told that MCS doesn't think the area needs reinforcement for a street/track car. The dampers will come out of the car for servicing at the end of the year. When that happens, we'll look closely at the area around the shock mount to see if anything needs to be done at that time. And, of course, I'll post about that or any failures I have here.

Sent from my H8314 using Tapatalk



D1JL

6000 Post Club
Staff Member
Premium Account
Messages
6,582
Likes
2,354
Location
SFV, So.Cal.
#10
If I may make a suggestion.
Take a measurement between the tops of the rear shocks now and compare it at the end of the year.
The stress over time should cause that distance to become less.
Unlike the front, there is no bulkhead to prevent the coilover tops to bow inward.
That is what the gussets and roll cage provided.



OP
Questionable
Messages
114
Likes
66
Location
DFW
Thread Starter #11
If I may make a suggestion.
Take a measurement between the tops of the rear shocks now and compare it at the end of the year.
The stress over time should cause that distance to become less.
Unlike the front, there is no bulkhead to prevent the coilover tops to bow inward.
That is what the gussets and roll cage provided.
A good suggestion. I'll take that measurement this weekend when I've emptied the hatch.

Sent from my H8314 using Tapatalk



Messages
353
Likes
186
Location
Germantown
#12
If I may make a suggestion.
Take a measurement between the tops of the rear shocks now and compare it at the end of the year.
The stress over time should cause that distance to become less.
Unlike the front, there is no bulkhead to prevent the coilover tops to bow inward.
That is what the gussets and roll cage provided.
Id be worried about a big enough hit to rip right through the top sheet metal where it bolts into the body. This is very reminiscent of the E46 BMW M3 rear spring perch issue. Over time it will crack and tear.



Messages
321
Likes
156
Location
Rochester
#13
I'd highly recommend running a rear strut bar if you're going to do this. it will help protect the towers similar to how a cage can. cheap insurance
