Chasing P0246

[Bizzareo]

Hey guys.

GTX2860R w/ EWG and the CPE HKS bov kit and related bolt on's

So I've been chasing this code since the end of last season (car goes in storage for the winter w/ no access).
(note the limp mode code just came up, going to re-flash after work. I replaced the solenoid yesterday)
I was 5 tune revisions in before this code was thrown with great power (dizzy). So not much had changed.

I do however get a much quieter BOV action (not sure if this is due to lower boost @ ~12lbs or so)

So far I have replaced the EWG and boost solenoid, going to re verify the routing on the solenoid. I believe all that is left is the sensor on the top of the manifold, the cold side charge pipe sensor and the BOV? I doubt I cooked a sensor as the car is low mileage (less then 55xxx KM's).

Random thoughts:
- I hear the wastegate open under load (screamer pipe)
- Possibility of a collapsed reference hose?

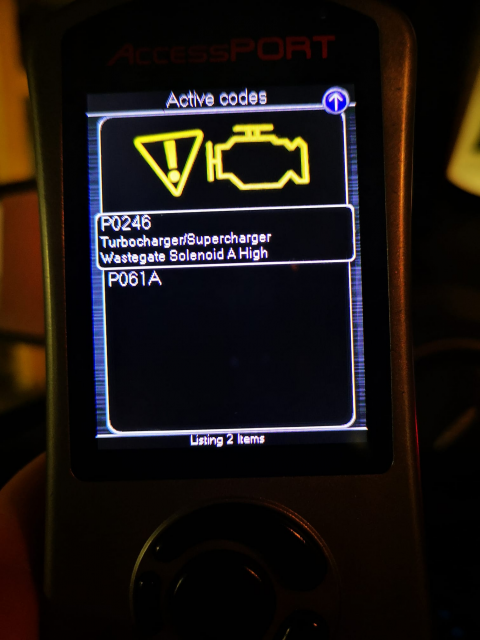

Codes as of this morning

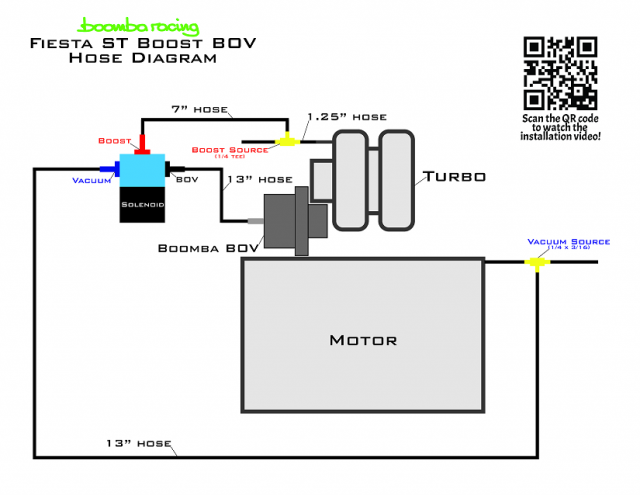

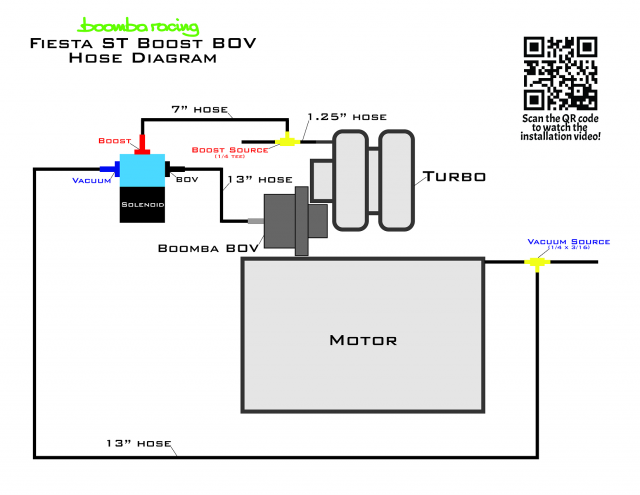

I found this mapping for the solenoid from boomba, I'm fairly certain I have the routing correct as I had full boost previously

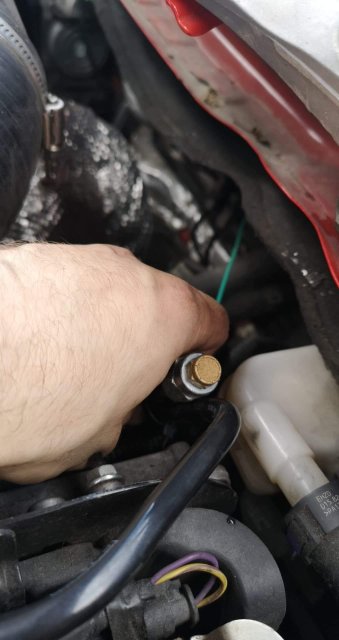

CPE MAP tap sensor location.. Don't think this will be causing issues, however this has been my boost reference source during dyno tuning.


Any help would be appreciated! I want my BOOOOOST back



[TyphoonFiST]

Have you limited Boost in 1st and 2nd gear? or are you just Balls to the Walls send it?



[felopr]



[Bizzareo]

Have you limited Boost in 1st and 2nd gear? or are you just Balls to the Walls send it?

I have no boost limit in 1'st and 2'nd. Was averaging lbs 22-24lbs in all gears.

I saw a note on the forum about a specific fuse (I think it was E24), will have to check that. It's strange the car has gone into limp mode with the new solenoid. Got some tinkering to do tonight



[Bizzareo]

This photo didn'tshow up



[TyphoonFiST]

Also check the Wiring near the Wastegate/Boost solenoid. I found mine was nicked and shorting a while back. Cut the harness off and replaced the section that was damaged. I have the harness number somewhere also. I think its in my thread related to it.



[TyphoonFiST]

This is my thread on e24 fuse and codes.....

https://www.fiestastforum.com/threa...r-but-doesnt-complete-the-firing-cycle.20033/



[Bizzareo]

Thanks!

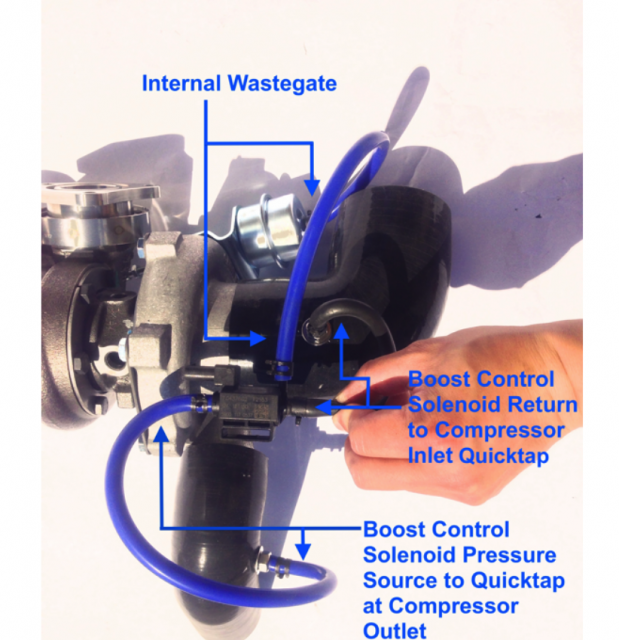

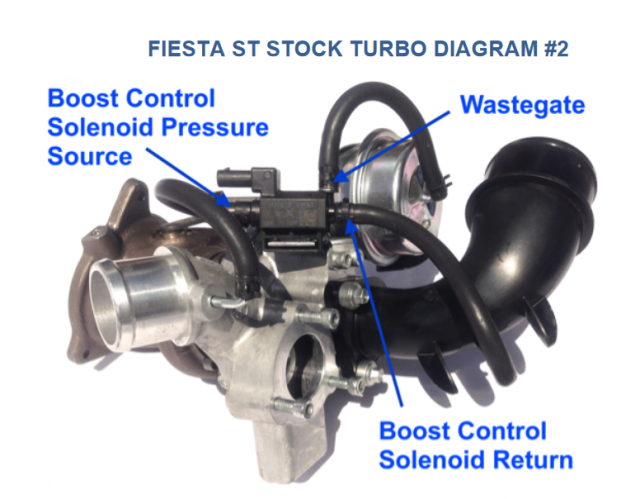

While researching I went back to the ATP install guide and found a really good routing document for our specific solenoid.

Once I get this fixed I'll do a troubleshooting post. BOV is shippied from Raptor racing already so thats a plus (Shipping in Canada during the 'rona has been sloooow)

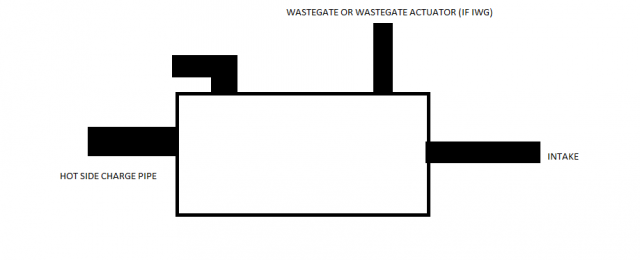

And jsut to make it as simple for myself as possible:



[Bizzareo]

Just checked the fuse (F24 on mine) looks good.

For reference if anyone is in a pinch the bank of 4 10A fuses to the left of the center fuse block are for the headlights and can be harvested in a pinch.

Weather forecast looks good for the next few days. Going start full time on this tomorrow. Better go buy a 24 LOL



[TyphoonFiST]

Replace it anyways* I have had fuses look "good" put a new one in and worked just fine! Story of my life!



[Bizzareo]

Parts showed up earlier this week. Finally getting at this!

Will post my results



[Bizzareo]

Almost had the car buttoned back up tonight but got rained out at the last minute. cowl and headlights and I'm good to go.

Fixed some other minor things. Dumped out my catch can and got like 1/4 cup of oil! Haven't drained it in ages however so that may not be telling. Will be keeping an eye on it.

Inspected the BOV O ring, seemed fine. but just in case I installed the HKS I installed (god I wish I went TIAL flange).

Chased the other two hoses for the solenoid. They are routed correctly, but my installer did something weird with the intake side (pics attached), it's routed to atmosphere rather then the intake.

I'm going to pick up a barbed fitting and route this to an intake elbow to see if it helps at all. There should be a slight pressure difference between atmosphere and the intake.



[Bizzareo]

Spoke with my turbo guy RE atmosphere vs intake. No difference.

New BOV didn't fix it. Going to spend next weekend chasing the wiring harness too see if I can find an open anywhere.



[Bizzareo]

Issue was found!!!

OF COURSE IT WAS THE FRIGGIN WIRING UGH.


I'll do a compile of troubleshooting this issue.



[TyphoonFiST]

Issue was found!!!

OF COURSE IT WAS THE FRIGGIN WIRING UGH.
View attachment 32018

I'll do a compile of troubleshooting this issue.

What wiring pigtail was it for? Wastegate Boost solenoid?

Sent from my SM-N975U1 using Tapatalk



[TyphoonFiST]

here is the ferd part number...... CU2Z*14S411*AKA



[Bizzareo]

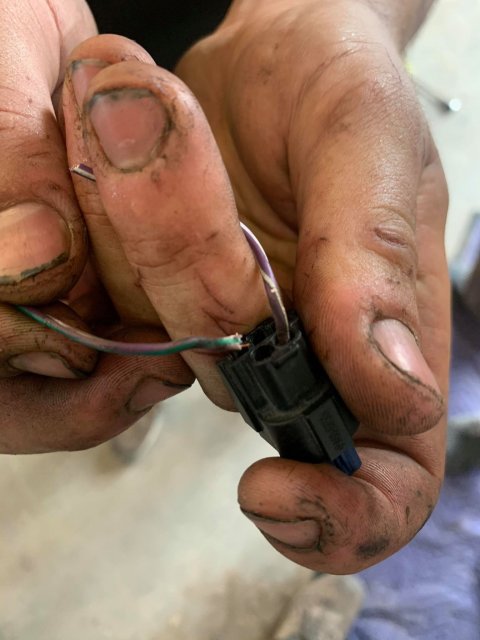

Yea it was for the solenoid pig tail. managed to clean out the wire and fix it.

I think I'm just going to order a couple of connectors. But car might go for sale soon (want to restore my 79 Camaro)
