Some help with vacuum routing/symposer delete HKS

[zombiekillr69]

Hey guys hoping someone can chime in to help, I have HKS ssqv symposer delete and am using the S280 (installing it now and getting turbo put together).

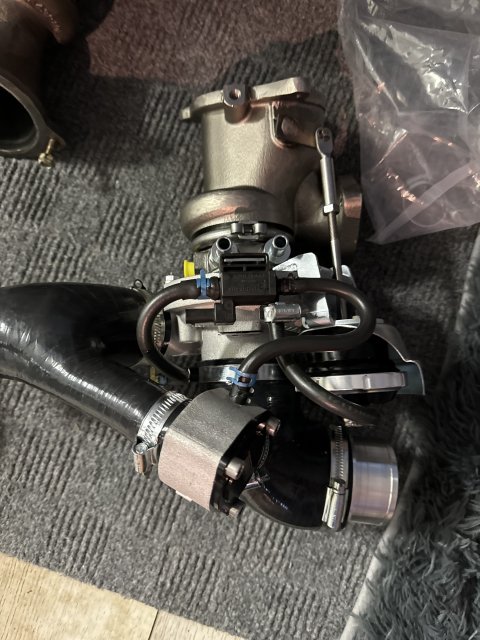

does my picture look accurate as far as proper routing for the hoses, since I am using the BOV block off plate I assume the hose that would have gone to bov goes there but I'm not sure. Can't find any pics of anybody using the block off plate w symposer delete BOV.

thanks in advance guys. I think this is right but just to be sure feel free to take a gander.

happy Saturday



[dhminer]

That’s correct. If you felt like getting new elbows, you can eliminate the BOV adapter and block off plate entirely.



[zombiekillr69]

But I would have to send that vacuum from solenoid somewhere no?



[dhminer]

But I would have to send that vacuum from solenoid somewhere no?

Nope. That return line can just be left open



[zombiekillr69]

Thanks so much man



[dhminer]

Anytime. Good luck!
