How do I know I I have a wet belt driven or gear driven oil pump?

[RBYM]

I have a 2019 fiesta st 1.6l usdm, do I have a gear driven oil pump or wet belt? Is it prone to issues? I used Castrol magnatec 5w30 oil.



[RBYM]

Car was built before August 2019.



[Intuit]

Curious about the reason for the question? Unless you're consistently in an unusually frigid/hot environment that oil will do fine.

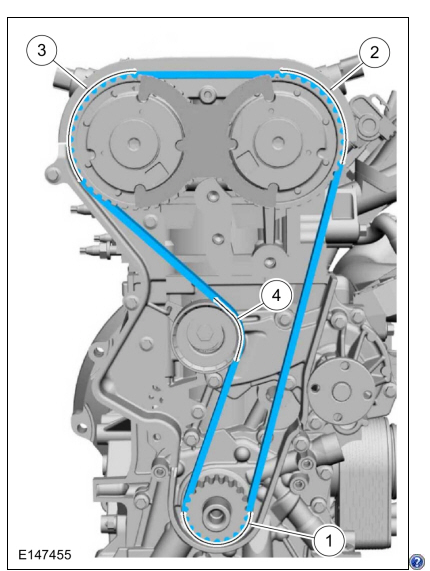

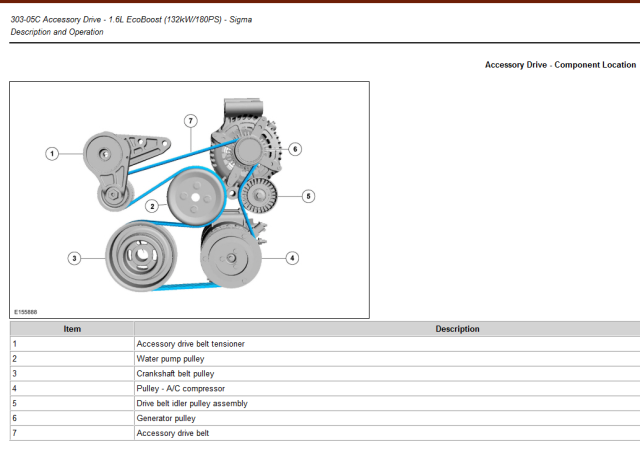

The only belts these vehicles have are the serpentine (aka Accessory Drive) and timing belt.

No known issues with what is presumably a gear driven oil pump.



[RBYM]

Curious about the reason for the question? Unless you're consistently in an unusually frigid/hot environment that oil will do fine.

The only belts these vehicles have are the serpentine (aka Accessory Drive) and timing belt.

No known issues with what is presumably a gear driven oil pump.

View attachment 68077

View attachment 68078

It was from a simple google search that the oil pump seal can wear out causing issues with the oil pump if not using the correct spec oil.



[TyphoonFiST]

Ours are Dry Belt* The 1.0L Ecoboost were the Wet timing belt type.
