Installing a fixed-back seats - info and considerations

Wes7

Member
Messages
44
Likes
44
Location
Rowlett, TX, USA
#1
I just got done installing a Recaro SPG seat in my 2016 Fiesta, so I thought I’d compile the info on installing an aftermarket, fixed-back seat in one spot for folks, along with the info on how I set mine up.

Considerations

First of all, before installing any aftermarket seat, particularly in a street car, understand that you are compromising the factory safety system. Regardless of what seat you use and how you set it up, you are still moving from a tested, known setup to an unknown setup on a critical safety component. Maybe it will still protect you in a wreck. Maybe not. At a minimum, you are giving up your side impact airbag.

Most fixed-back seats are not made to work with 3-point seat belts - they are competition parts meant to be used with a full cage and 5+ point harnesses. Notable exceptions include the Recaro Pole Position ABE (this is a Euro-only seat that is different than the Pole Position FIA available here) and the Cobra Nogaro. The main difference, as I understand it, is that most seats make no accommodation for properly routing the waist belt of a 3 point belt. Many people deal with this by leaving the female buckle outside the shell, routing the waist belt over the edge of the bolster. In most cases, this will not allow the belt to function properly, and could allow you to submarine under the belt, resulting in severe injury even in a relatively minor wreck. For the belt to work properly, it must closely wrap around your hips.

For folks on the shorter end of the spectrum, seat height may also be an issue. I’m 5’9 and, with the height maxed out on my Sparco side mounts, with sliders, I am at about the same height as the factory non-Recaro seats in their lowest position.

One final note - using an aftermarket seat is almost never cheaper than just swapping to factory Recaros. Factory Recaros are often available for $1000 or less. A quality seat from a manufacturer like Recaro, Sparco, Cobra, or OMP will easily run you $600 and up, and you’ll still need to buy the parts to mount it, which will cost several hundred dollars. If the factory Recaros meet your needs, just get those and be done with it.

Parts

To mount the seat, you will need:

-A seat
-A seat base - Sparco and Planted are the most common
-Side mounts that mate up to your seat
-Sliders that will mate up to both your side mounts and base (unless you are fixing the seat in place, in which case you may need to drill your seat base)
-Hardware to put it all together - both Planted and Sparco sell hardware kits to make this easy
-A 2.2ohm resistor to fool the car into thinking the side impact airbag is still connected
-A nut for the female seat belt buckle if you are retaining your 3-point belts
-Technically, according to the factory manual, you should use new bolts for the seat

Install

To mount a fixed-back seat, you’ll start by assembling the seat to the base. I used a Sparco 600 series seat base, Sparco sliders, and Sparco 90” aluminum side mounts to mount my Recaro SPG. That arrangement mounted up pretty effortlessly.

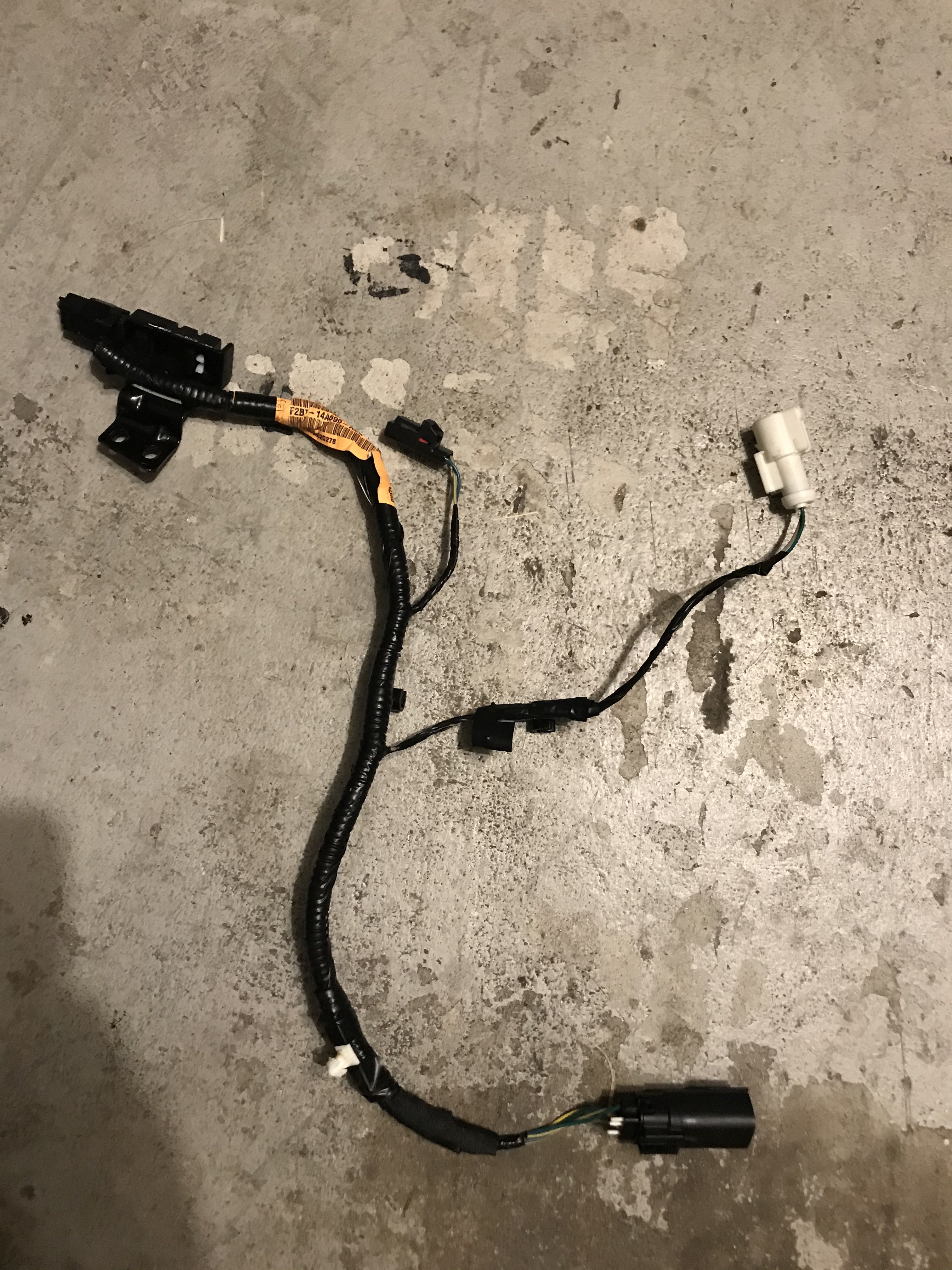

When you remove your stock seat, you will unplug the seat harness from the body harness. You’ll then remove the seat harness to transfer it over to your new seat. The seat harness has the following plugs:

-Side Impact Airbag
-Seat Belt Sensor
-Seat Track Position Sensor
-Seat Heater (if you have factory Recaros - I didn’t)
-Plug to body wiring harness


Side Impact Airbag: Since you no longer have this airbag, you’ll fool the RCM into thinking the airbag is still there using a 2.2ohm resistor. I just jammed the ends of the resistor into the plug, and taped it up very securely. Others have also used vampire clips to wire the resistor in. Either way works fine.

Seat Track Position Sensor: This is a Hall-type sensor that detects a metal plate on the stock seat rail when the seat is within a certain distance of the steering wheel. While the manual does not say so explicitly, I imagine this controls whether both stages of the dual-stage main airbag are deployed, and possibly if the airbag is deployed at all. How you mount this depends on your seating position. In most cases, you will want to be sure the sensor is mounted away from anything that it could detect so your airbags deploy normally. For some short drivers, it is possible you may need to mount it where it senses metal.

Seat Belt Sensor: This plugs into the seat belt buckle - be sure it is mounted where the wire from the seat belt buckle will reach throughout the adjustment range of the seat.

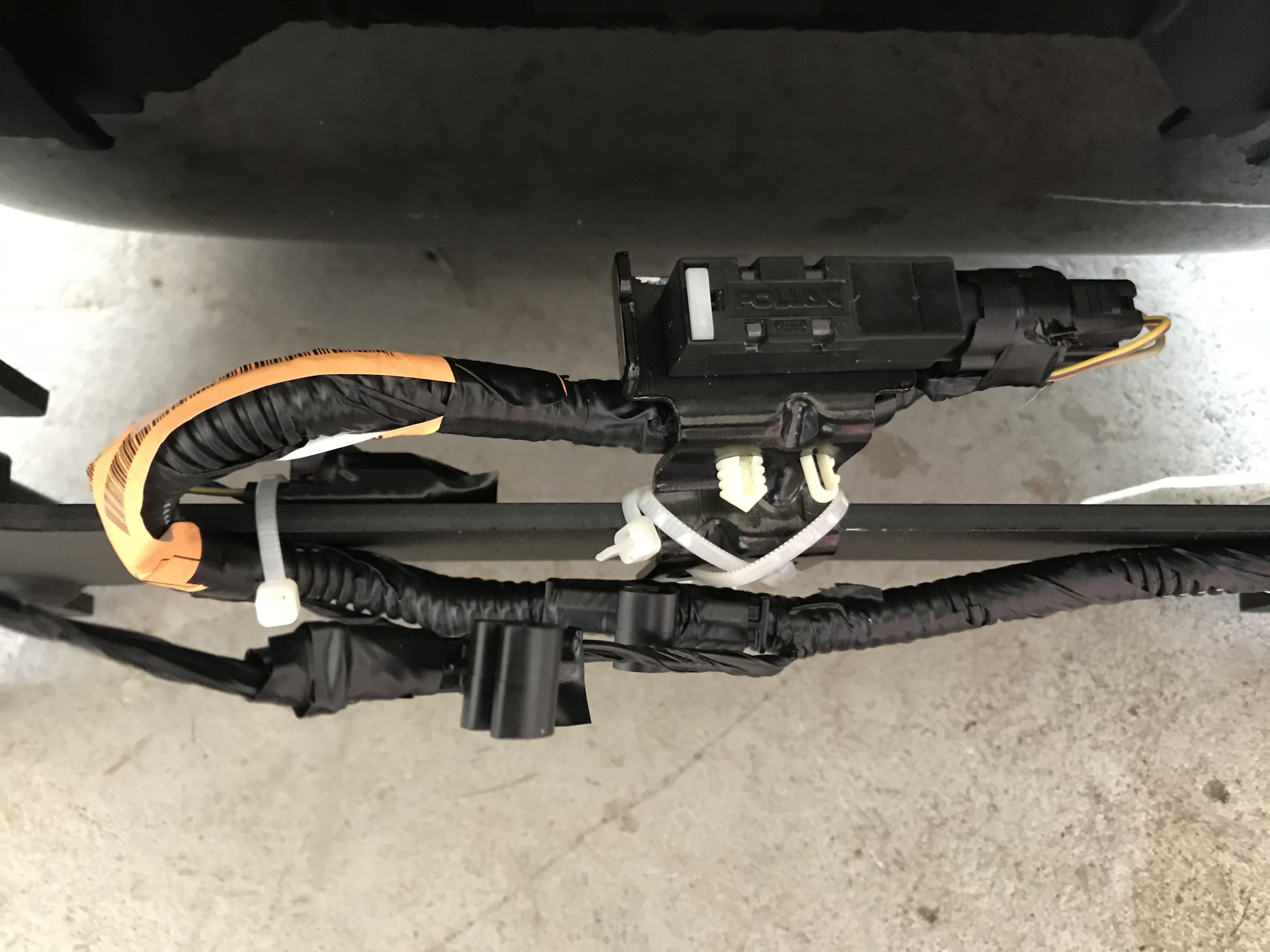

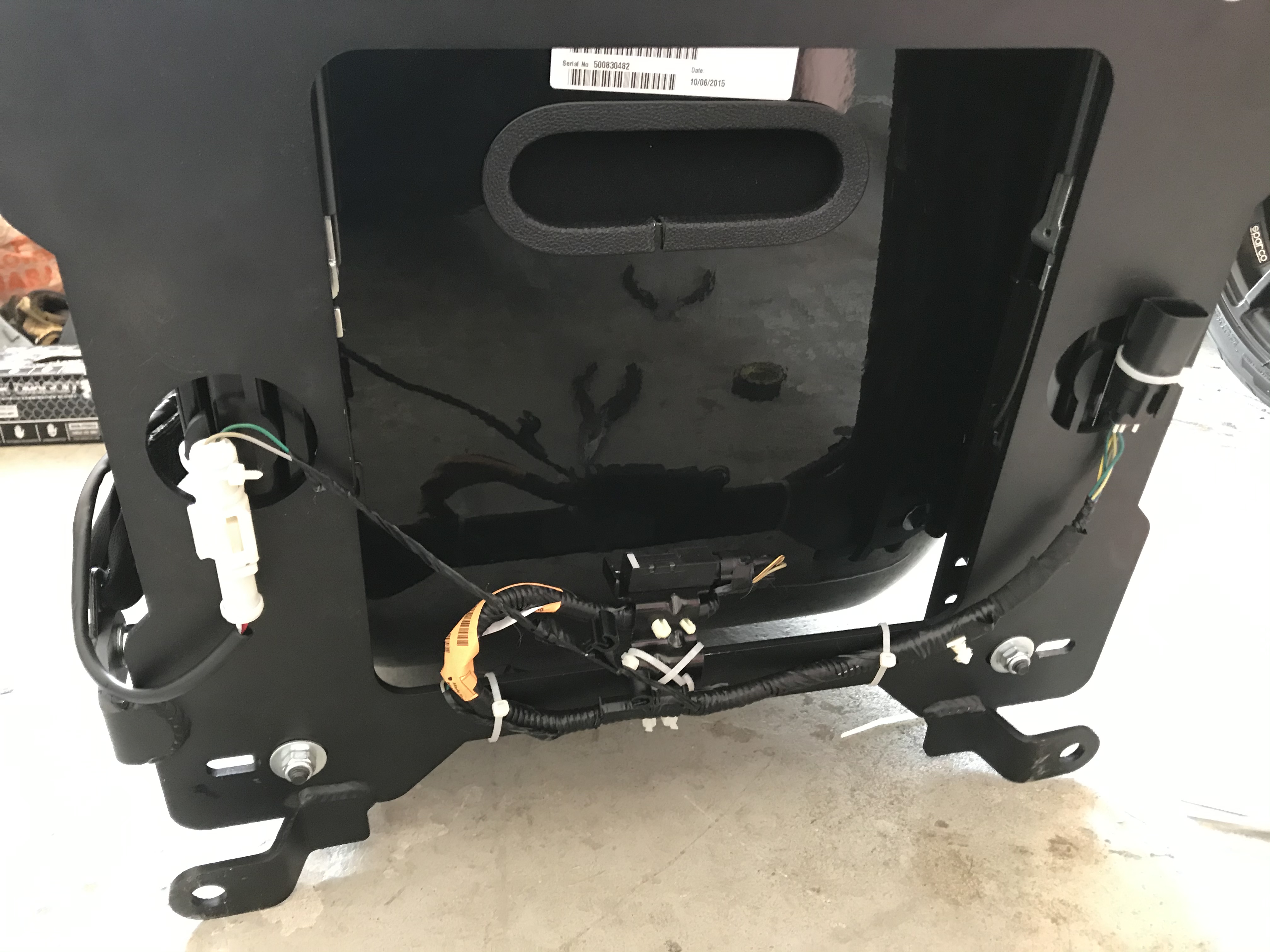

Here is how I mounted my wiring harness:

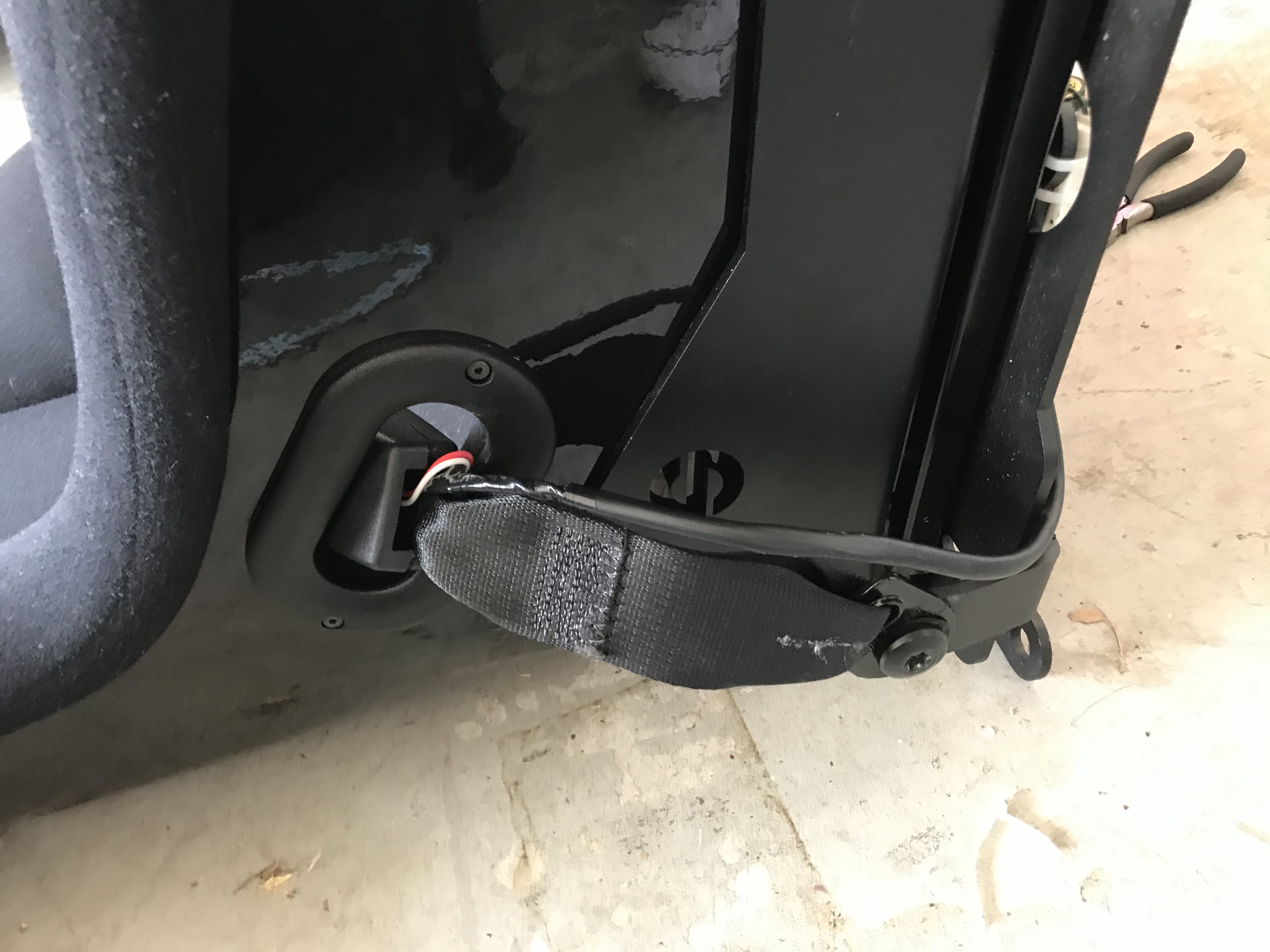

Close-up of the Seat Track Position Sensor and taped-up airbag sensor plug:


You’ll also need to move over your seat belt buckle if you are retaining your 3-point seat belt. It should be torqued to 48 Nm.

Again, lots of folks just leave the buckle outside the shell, so that the waist belt runs over the top of the bolsters. In most cases, I believe this is very unsafe. The bolsters keep the belt from hugging your hips. Instead of the belt tightening along your hip and pelvis in a wreck, holding your lower body in place, you will likely slide down and forward, with the waist belt contacting your abdomen, potentially damaging your internal organs. This is called submarining, and it can cause serious injury even in minor wrecks.

To avoid this, you want the waist belt routed through the harness holes in the bolsters on both sides. This is easy enough on the door side - just unbolt the lower mounting bolt for the seat belt, route it through the harness slot, and bolt it back. It should be torqued to 40 Nm.

On the inboard side, it is a little harder. The best way I found was to remove the plastic sheath from the seat belt buckle. I could then route it through the harness slot, as the buckle is just attached to a length of seat belt webbing. I am 5’9 and 135 lbs, and this arrangement is just barely comfortable for me - the buckle gets forced into your hip a bit because the seat is not set up to allow a normal seat belt buckle in that position. It also may not reach properly on every seat and every mounting configuration. This is why a seat like the Cobra Nogaro, which is made to work with these belts, will be better for most people than running a competition seat.



Note that Ford calls for new bolts when mounting the seat. In my neck of the woods, these were special order. Plan ahead. The seat bolts should be torqued to 35 Nm.

Conclusion


All mounted! The seat is definitely a huge improvement when driving quickly. I also find it pretty comfortable, though I am very used to this particular seat. I have a few issues I am still fussing with. The seat base positions the seat very low - I have to mount the seat in the top slots on the side rails to get the seat high enough. I really prefer it raked back by lowering the rear one slot, but it compromised visibility over the steering wheel to do so. This could be fixed with a spacer - but then the seat belt buckle wouldn’t reach as well. The ultimate fix will probably be a spacer, and either having a fab shop remove and replace the seat belt mount on the base with a longer one, or use some sort of a short bolt-on seat belt extender to give me a little more reach. Or I’ll just get used to sitting very upright.

The seat exacerbates the poor ergonomics of the shifter as well. When shifting into 2nd, 4th, and 6th, my elbow is in the armrest and/or bolster. I’ll fix this down the road with a Coolerworx shifter.

All that said, it is still a big improvement over stock, and I love a fixed back seat. Hopefully this is helpful for anybody installing a fixed-back seat!
