Did you remember to replace the crash sensors for the airbag? They might be one time use only. the brake one might be related to the abs system faults. At least thats how it was on my now 13 year old focus. Id check the iat sensor on the intake and look to see if any of the intake manifold or airbox or plumbing for it got cracked in the crash. ( this happened with my mom's 08 focus when she rear ended a vehicle. It didnt look cracked at first. But upon getting the car back from ford with the bodywork fixed but the car not running right, we took it back and sure enough the manifold had a crack in it that they missed in the teardown.)



OP
F
Messages
71
Likes
57
Location
Minneapolis, MN, USA
Thread Starter #22
Did you remember to replace the crash sensors for the airbag? They might be one time use only. the brake one might be related to the abs system faults. At least thats how it was on my now 13 year old focus. Id check the iat sensor on the intake and look to see if any of the intake manifold or airbox or plumbing for it got cracked in the crash. ( this happened with my mom's 08 focus when she rear ended a vehicle. It didnt look cracked at first. But upon getting the car back from ford with the bodywork fixed but the car not running right, we took it back and sure enough the manifold had a crack in it that they missed in the teardown.)
I did not replace crash sensors. The car did not have any airbags deployed or anything like that so I didn't feel like I needed to replace the two sensors on the crash bar and I would rather not if they are good but I have no idea if that is required or not. I would also like to know for sure before I go ahead and spend $100 per each sensor haha

The air box is cracked towards the bottom but that shouldn't make that much of a difference as far as I'm aware? plus it is not bypassing the air that goes into the engine but I will look more into this.

I'll check the intake manifold but I don't recall seeing any cracks or anything around that area. The new charge air cooler pipe (the one going from the intercooler to the throttle body) came with a new sensor and I just reused the iat sensor since it looked fine on the air intake pipe

I kept trying to check for voltage / resistance and stuff within the wheel speed sensors and I just don't know if I was completely off or they just weren't getting anything but I couldn't get an fing reading. I'm also pretty sure this can't be the sensor itself since it was just fine when I first got the car... Maybe I need to hard reset the ABS module?



OP
F
Messages
71
Likes
57
Location
Minneapolis, MN, USA
Thread Starter #24
Quick update:

I tried clearing codes again and while the P1934 has not come back I suspect it will soon since I still have ABS, Traction control and Brake lights on. This is what I found on the workshop manual:

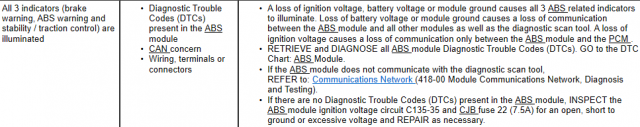

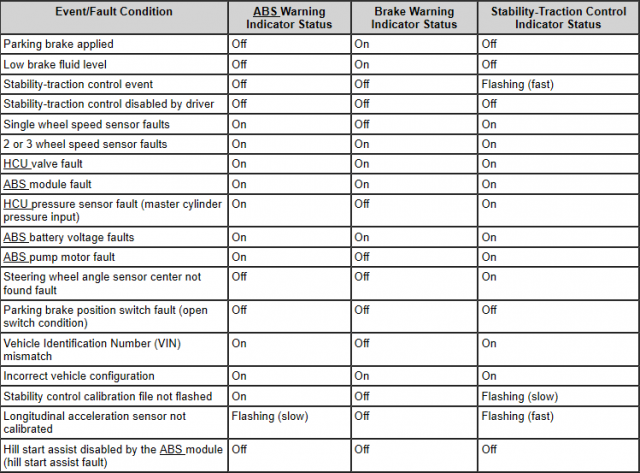

I've gone ahead and bought 2 wheel sensors... by looking at the table above I see the following things could be wrong:
2 or 3 wheel speed sensor faults (I still think this is unlikely but we'll see)
HCU valve fault
ABS module fault
ABS battery voltage faults
Incorrect vehicle configuration

I spent all day yesterday trying to clean the wheel speed sensors and they just looked great to me, heck they were working just fine when I got the car. The harness I replaced also looks good to me so I'm out of ideas. I even got this multi-meter but I'm either not using right or it's just pointless at trouble shooting stuff. I took it out again for a spin and sure thing, after going over 15mph, outside temperature disappears from the screen, airbag light goes off and power steering fault error pops up on the screen. The Power steering error goes away after you slow down.

The Bluedriver scan tool comes back with U0121 "Lost communication with Anti Lock Brake System Control Module"

At this point I'm thinking about having to re-do the whole wiring harness or take it to Ford for an ABS reprogramming but I sure don't want to pay that much for that... Does anyone have any ideas?



TyphoonFiST

5000 Post Club
Messages
5,959
Likes
2,453
Location
Rich-fizzield
#25
What are the codes set for the ABS module? That is a completely different system from the PCM/ECM codes. You also must have a scantool program that can read ABS and SRS codes.

Sent from my SM-N950U1 using Tapatalk



PunkST

Active member
Messages
774
Likes
305
Location
Menasha
#26
I wonder if the steering rack took a knock in the crash. Have you re centered the steering wheel? Also did you double check your grounds? Perhaps a connector isnt all the way in



OP
F
Messages
71
Likes
57
Location
Minneapolis, MN, USA
Thread Starter #27
I wonder if the steering rack took a knock in the crash. Have you re centered the steering wheel? Also did you double check your grounds? Perhaps a connector isnt all the way in
I noticed the inner tie rod was definitely bent so that will have to be replaced. I checked all the grounds from the wiring harness and did not see anything out of ordinary. I also went ahead and looked at every connector and they all seemed right where they needed to be, however, I'll double-check everything again by tomorrow as I was rushing things today.



OP
F
Messages
71
Likes
57
Location
Minneapolis, MN, USA
Thread Starter #28
What are the codes set for the ABS module? That is a completely different system from the PCM/ECM codes. You also must have a scantool program that can read ABS and SRS codes.

Sent from my SM-N950U1 using Tapatalk
So I took Forscan out again today and this is what it reported

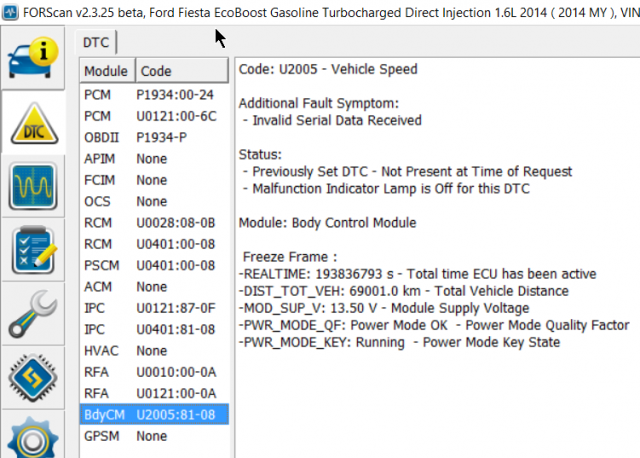

2019-10-15 22_19_17-Start.png

Nothing from the ABS module which I found interesting as the ABS module doesn't even show up. Maybe the car is not connecting with the ABS module at all and that's what is causing this whole mess?

Below are the codes and what they say:

Code: P1934 - Vehicle Speed Signal
Status:
- DTC Maturing - Intermittent at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Powertrain Control Module

Code: U0121 - Lost Communication With Anti-Lock Brake System (ABS) Control Module A
Status:
- DTC Maturing - Intermittent at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
- Test not complete
Module: Powertrain Control Module

Code: P1934 - Vehicle Speed Signal
Status:
- Pending - malfunction is expected to be confirmed
Module: On Board Diagnostic II

Code: U0028 - Vehicle Communication Bus A
Additional Fault Symptom:
- Bus Signal/Message Failures
Status:
- DTC Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Restraint Control Module

Code: U0401 - Invalid Data Received from ECM/PCM A
Status:
- Previously Set DTC - Not Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Restraint Control Module

Code: U0401 - Invalid Data Received from ECM/PCM A
Status:
- Previously Set DTC - Not Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Power Steering Control Module

Code: U0121 - Lost Communication With Anti-Lock Brake System (ABS) Control Module A
Additional Fault Symptom:
- Missing Message
Status:
- DTC Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Instrument Panel Control Module

Code: U0401 - Invalid Data Received from ECM/PCM A
Additional Fault Symptom:
- Invalid Serial Data Received
Status:
- Previously Set DTC - Not Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Instrument Panel Control Module

Code: U0010 - Medium Speed CAN Communication Bus
Status:
- DTC Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Remote Function Actuator

Code: U0121 - Lost Communication With Anti-Lock Brake System (ABS) Control Module A
Status:
- DTC Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Remote Function Actuator

Code: U2005 - Vehicle Speed
Additional Fault Symptom:
- Invalid Serial Data Received
Status:
- Previously Set DTC - Not Present at Time of Request
- Malfunction Indicator Lamp is Off for this DTC
Module: Body Control Module
Freeze Frame :
-REALTIME: 193836793 s - Total time ECU has been active
-DIST_TOT_VEH: 69001.0 km - Total Vehicle Distance
-MOD_SUP_V: 13.50 V - Module Supply Voltage
-PWR_MODE_QF: Power Mode OK - Power Mode Quality Factor
-PWR_MODE_KEY: Running - Power Mode Key State



PunkST

Active member
Messages
774
Likes
305
Location
Menasha
#29
It very well could be. The electric rack, and abs/stability/traction control communicate with the abs module. Maybe check for a popped fuse for the abs system? Always a good idea to start simple.



OP
F
Messages
71
Likes
57
Location
Minneapolis, MN, USA
Thread Starter #30
It very well could be. The electric rack, and abs/stability/traction control communicate with the abs module. Maybe check for a popped fuse for the abs system? Always a good idea to start simple.
I checked all the fuses in the engine compartment and the ABS one inside the cabin and they were good, however, I didn't check every single fuse behind the glove box so I'll do that tomorrow. I'm starting to think it is the wiring harness I installed...



PunkST

Active member
Messages
774
Likes
305
Location
Menasha
#31
I hope not. If so i guess that mean the old harness is going in and your pulling parts off the new harness.



TyphoonFiST

5000 Post Club
Messages
5,959
Likes
2,453
Location
Rich-fizzield
#32
I think the PCM/ECM will have to be re-flashed due to the fact it may be a Can-bus network system. In CAN-BUS systems when introducing new parts the computer needs to be told that its been replaced. weird I know. But with some of the cars I've worked on especially Chrysler LLC vehicles with can-bus are really sensitive with certain components. You would have to go in and re-flash the computer to let it know there was a new part introduced.



PunkST

Active member
Messages
774
Likes
305
Location
Menasha
#33
DUDE!!! I think you just solved my nav problem. Now is that something he and i could do with forscan for our individual issues?



Messages
55
Likes
39
Location
Portland
#34
I think the PCM/ECM will have to be re-flashed due to the fact it may be a Can-bus network system. In CAN-BUS systems when introducing new parts the computer needs to be told that its been replaced. weird I know. But with some of the cars I've worked on especially Chrysler LLC vehicles with can-bus are really sensitive with certain components. You would have to go in and re-flash the computer to let it know there was a new part introduced.
This is exactly where to start IMO. Any major work done could result in serious miscommunication between new parts and old modules. The workshop manual recommends doing a programmable module installation (PMI) after major repairs, so you could do this on the ABS module, Body Control Module (BCM) and the instrument panel cluster module (IPC) *after* your repairs are done. You might also check for an updated PCM calibration after that. Unfortunately this probably requires IDS and a VCM.

I haven't had the opportunity to run through ForScan features but if it offers a network test I would try to do that first and foremost though. But I have seen some impressive datalogging capabilities from ForScan so you might also want to view your wheel speed sensor signals as they are spun up to check for missing/breaking signals if possible.

Sent from my LGLS990 using Tapatalk



OP
F
Messages
71
Likes
57
Location
Minneapolis, MN, USA
Thread Starter #36
I think the PCM/ECM will have to be re-flashed due to the fact it may be a Can-bus network system. In CAN-BUS systems when introducing new parts the computer needs to be told that its been replaced. weird I know. But with some of the cars I've worked on especially Chrysler LLC vehicles with can-bus are really sensitive with certain components. You would have to go in and re-flash the computer to let it know there was a new part introduced.
True but what new part or component(s) was introduced that could lead to having to reflash it? The wiring harness was the only part that I can think that could mess with the ABS module but it seems like the computer is not seeing it at all.

Is the reflashing something I can do myself with Forscan or will I have to bring it into the dealership? I tried looking for the ABS module in Forscan and it's just not there, it doesn't even throw any DTCs.



OP
F
Messages
71
Likes
57
Location
Minneapolis, MN, USA
Thread Starter #37
This is exactly where to start IMO. Any major work done could result in serious miscommunication between new parts and old modules. The workshop manual recommends doing a programmable module installation (PMI) after major repairs, so you could do this on the ABS module, Body Control Module (BCM) and the instrument panel cluster module (IPC) *after* your repairs are done. You might also check for an updated PCM calibration after that. Unfortunately this probably requires IDS and a VCM.

I haven't had the opportunity to run through ForScan features but if it offers a network test I would try to do that first and foremost though. But I have seen some impressive datalogging capabilities from ForScan so you might also want to view your wheel speed sensor signals as they are spun up to check for missing/breaking signals if possible.

Sent from my LGLS990 using Tapatalk
Sounds like something the dealership will have to take care of... I played around last night with Forscan and the module self tests were just throwing the codes not much more than that. I also tried looking for the wheel speed sensors logs and all I was able to find was a car speed log which doesn't tell me which one is actually failing, if any.



Messages
55
Likes
39
Location
Portland
#38
That's unfortunate that the WSS signals can't be logged with ForScan.

If you are still not getting communication to/from the ABS module it might actually be the module communications network. Those wires you have pictured as damaged in one of your earliest posts (#2 picture 2) specifically VDB04 (White with blue stripe) and VDB05 (White, not pictured) are for the HSCAN communications network between the PSCM (Power steering control module), IPC (Instrument Panel Cluster), RFA (Remote function actuator), ABS, RCM (Restraints control module), and your PCM. If there was an issue in communication between all of these modules due to the physical wiring it could explain most if not all of your current issues.

That picture in post #2 image 2 is concerning because of the bare metal and exposed wiring from the insulation being crushed. If the communications wire shorted to the body that way, the result couldn't be good. It may have wreaked havoc on the modules in that network, but that's getting into conjecture at that point.

Sent from my LGLS990 using Tapatalk

Edit: cleared up a couple of things



Last edited:
OP
F
Messages
71
Likes
57
Location
Minneapolis, MN, USA
Thread Starter #39
That's unfortunate that the WSS signals can't be logged with ForScan.

If you are still not getting communication to/from the ABS module it might actually be the module communications network. Those wires you have pictured as damaged in one of your earliest posts (#2 picture 2) specifically VDB04 (White with blue stripe) and VDB05 (White, not pictured) are for the HSCAN communications network between the PSCM (Power steering control module), IPC (Instrument Panel Cluster), RFA (Remote function actuator), ABS, RCM (Restraints control module), and your PCM. If there was an issue in communication between all of these modules due to the physical wiring it could explain most if not all of your current issues.

That picture in post #2 image 2 is concerning because of the bare metal and exposed wiring from the insulation being crushed. If the communications wire shorted to the body that way, the result couldn't be good. It may have wreaked havoc on the modules in that network, but that's getting into conjecture at that point.

Sent from my LGLS990 using Tapatalk

Edit: cleared up a couple of things
All those wires are part of the engine compartment wiring harness which was replaced (see post #4). I grabbed the workshop manual where they explain what to do to troubleshoot the ABS module if this one is not responding. I checked for voltage in the ABS module connector and I was getting a solid 12V from each one of the pins they wanted me to check:

I also checked the fuses and all of them were good.

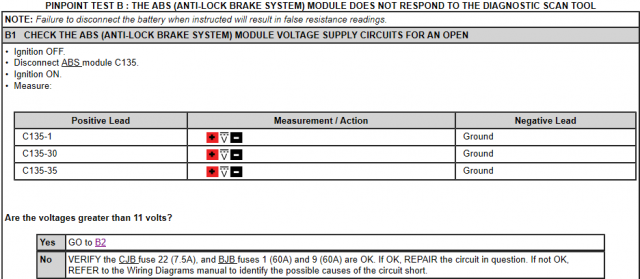

Next, I went to B2 (and B3 since B3 didn't work out) where I checked for resistance. While I think I did this right, getting the negative lead plugged into the data link connector (for step B3) and the positive into the ABS connector was a challenge as I didn't have long enough cables so I had to "extend" the ones I had with wires I had laying around.

Not sure the best way to check for resistance but while I was seeing spikes of 30-140 while trying to put the lead into the connector, once it was secured and touching, I was getting close to 0 ohms. So I don't think this is the problem

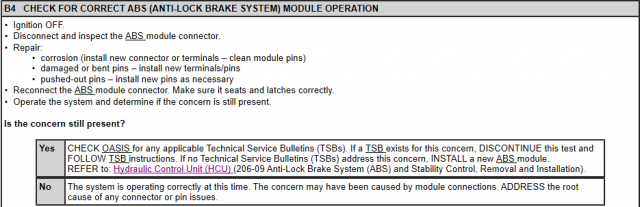

Lastly, I went over B4 and everything seemed right other than not working.

These are the connectors and what each pin means

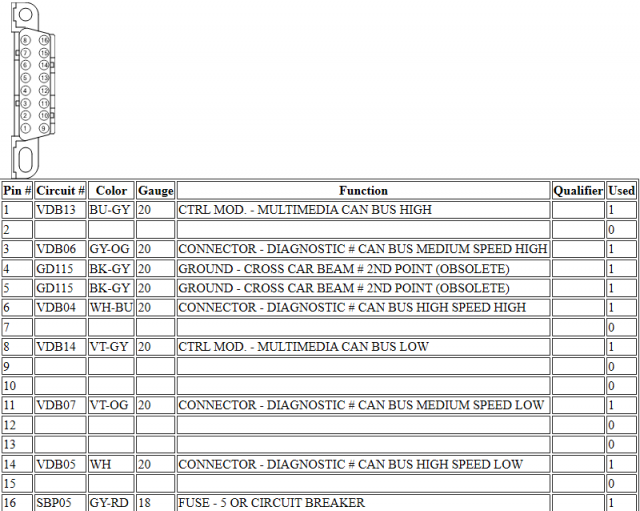

And for the Data link connector:



Messages
55
Likes
39
Location
Portland
#40
All those wires are part of the engine compartment wiring harness which was replaced (see post #4). I grabbed the workshop manual where they explain what to do to troubleshoot the ABS module if this one is not responding. I checked for voltage in the ABS module connector and I was getting a solid 12V from each one of the pins they wanted me to check:
View attachment 24326

I also checked the fuses and all of them were good.

Next, I went to B2 (and B3 since B3 didn't work out) where I checked for resistance. While I think I did this right, getting the negative lead plugged into the data link connector (for step B3) and the positive into the ABS connector was a challenge as I didn't have long enough cables so I had to "extend" the ones I had with wires I had laying around.

Not sure the best way to check for resistance but while I was seeing spikes of 30-140 while trying to put the lead into the connector, once it was secured and touching, I was getting close to 0 ohms. So I don't think this is the problem

View attachment 24327
Lastly, I went over B4 and everything seemed right other than not working.
View attachment 24328

These are the connectors and what each pin means
View attachment 24329
View attachment 24330

And for the Data link connector:
View attachment 24331
I should add that I may have jumped the gun before by saying the communications network being shorted could damage the modules. After a small amount of research it doesn't seem that the module communication wires being shorted to the chassis in the event of the accident should damage the module in question, but being that the wiring seems intact after being replaced it really only leaves the possibility of the module(s) according to the WSM. That could get expensive very fast, and still may not solve your issue. More in depth testing is a bit painstaking and would be best with a scope. I apologise for not having anything more to add right now, but I'll try and do some more research and thinking after work. I'm stoked at the idea of this Fiesta coming back to life.

Sent from my SM-G930P using Tapatalk
